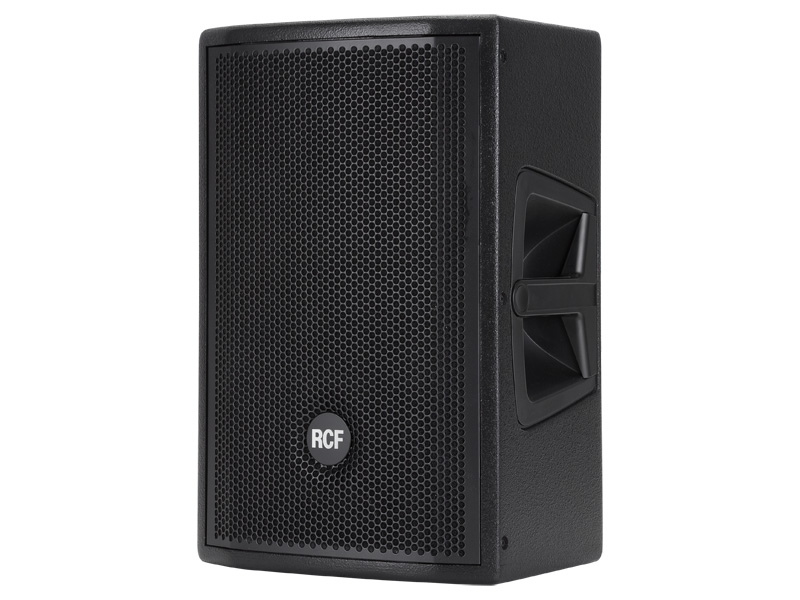

Описание за RCF NX M10-A
Features
-
750 Watt digital amplifier
-
129 dB max spl
-
90 x 70, Wide dispersion constant directivity horn
-
10" woofer, high power neodymium 2.5" voice coil
-
1" HF driver, titanium dome, neodymium 1.75" voice coil
-
PFC power factor correction
Acoustical Specifications
-
Frequency Response -3 dB: 50 Hz ÷ 20 kHz
-
Max SPL: 129 dB
-
Horizontal coverage angle: 90°
-
Vertical coverage angle: 70°
-
Compression Driver: 1" neo, 1.75" v.c.
-
Woofer: 10" neo, 2.5" v.c
Input/Output Section
-
Input signal: bal / unbal
-
Input connectors: Combo xlr-jack
-
Output connectors: xlr
-
Input sensitivity: -2 dBu / +4 dBu
Processor Section
-
Crossover frequencies: 1700 Hz
-
Protections: Thermal, rms
-
Limiter: Soft peak limiter
-
Controls: Volume, side / floor, contour
Amplifier Specifications
-
Total power: 750 W
-
High frequencies: 250 W
-
Low frequencies: 500 W
-
Cooling: Convection / forced
-

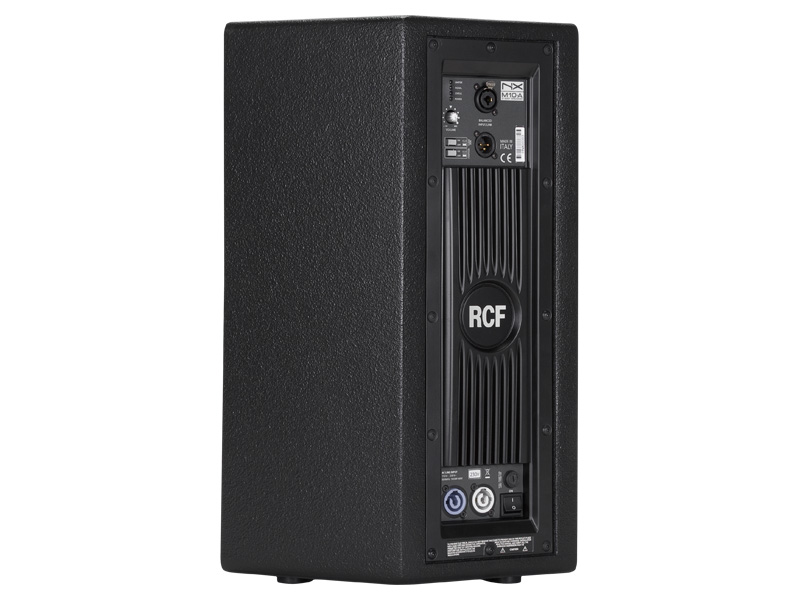

Connections: Powercon in / out
Cabinet
-
Cabinet Material: Balitc birch
-
Hardware: 6 x fly tracks
-
Handles: 2 side
-
Pole Mount/Cap: Yes
-
Colour: Black
Physical Specifications
-
Height: 515 / 20.27 mm/inch
-
Width: 334 / 13.14 mm/inch
-
Depth: 337 / 13.26 mm/inch
-
Net Weight: 15.2 / 33.5 kg/lbs
