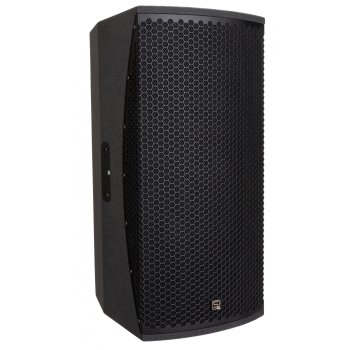

SQT-210

Premium class DSP-processed active speaker cabinet with 2x 10" LF + 1.4" MID/HF driver, designed for a wide range of professional high SPL applications

• Professional active speaker cabinet for a wide range of different applications:
  • RENTAL: sturdy cabinets with versatile audio inputs
  • STAGE: perfect solution for music bands who want a compact but powerful audio system
  • CLUBS, BARS, PRO DJs, ... : Incredible „hifi“ sound, even at high SPL
• Bi-Amping “Pascal Audio®” amplifier technology for maximum impact: LF 810W + MID/HF 810W RMS-power.
• DSP-controlled amplifier with different presets:
  • Parametric EQs
  • Limiter / compressors
  • Active 2-way crossover with FIR filtering
  • Factory presets for different applications
  • Sophisticated amplifier temperature management
  • Software and presets are upgradeable.
  • Fully tuned 4-Band parametric EQ for perfect sound
• SPL: 136dB @ 1m
• Perfect for both permanent installations and portable use (Rental, Bands, DJ, ...).

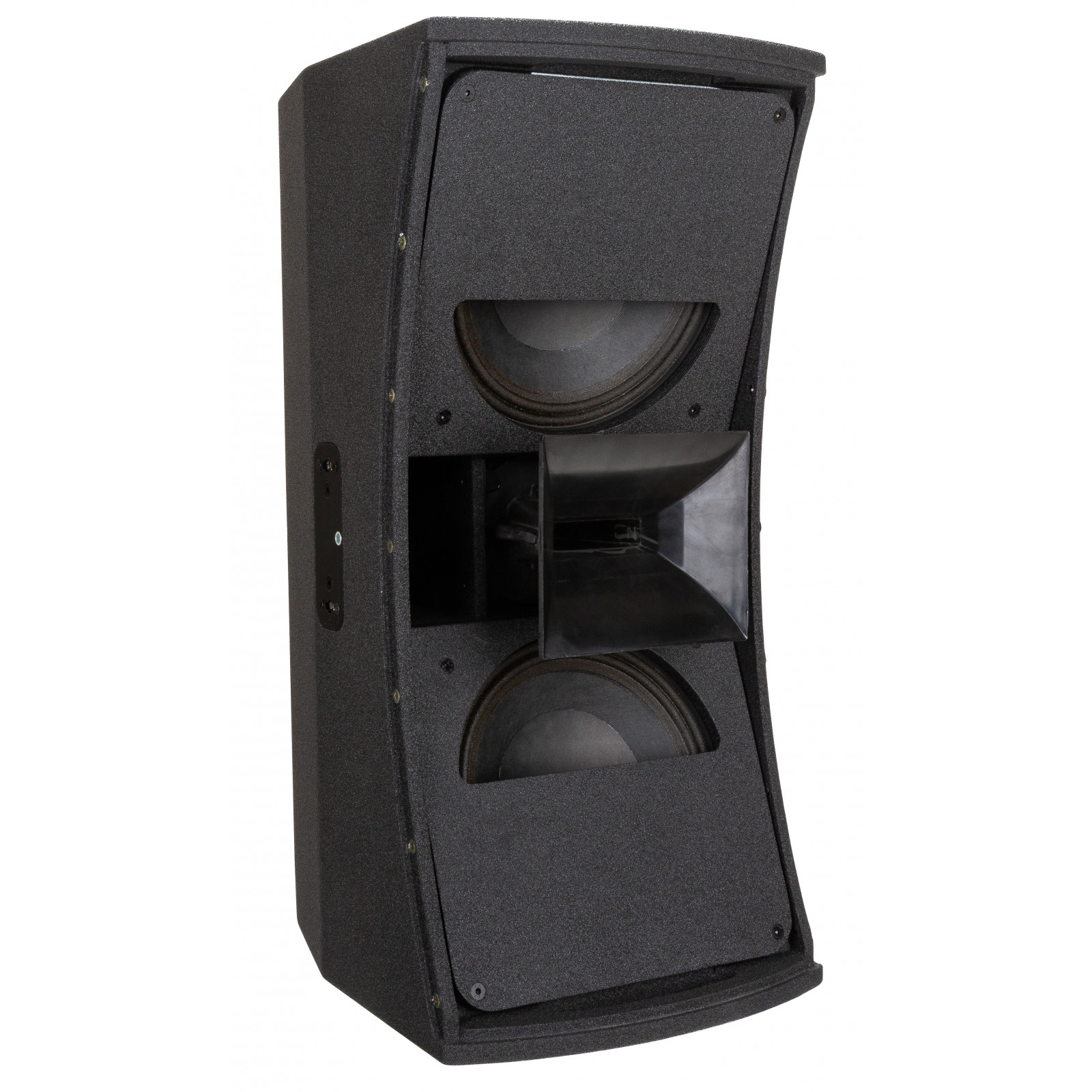

• Equipped with high power woofers & compression driver:
  • LF: 2x 10” long excursion woofers
  • MID/HF: 1.4” B&C compression driver (3” voice coil)
• Rotatable 70°x 40° constant directivity horn.

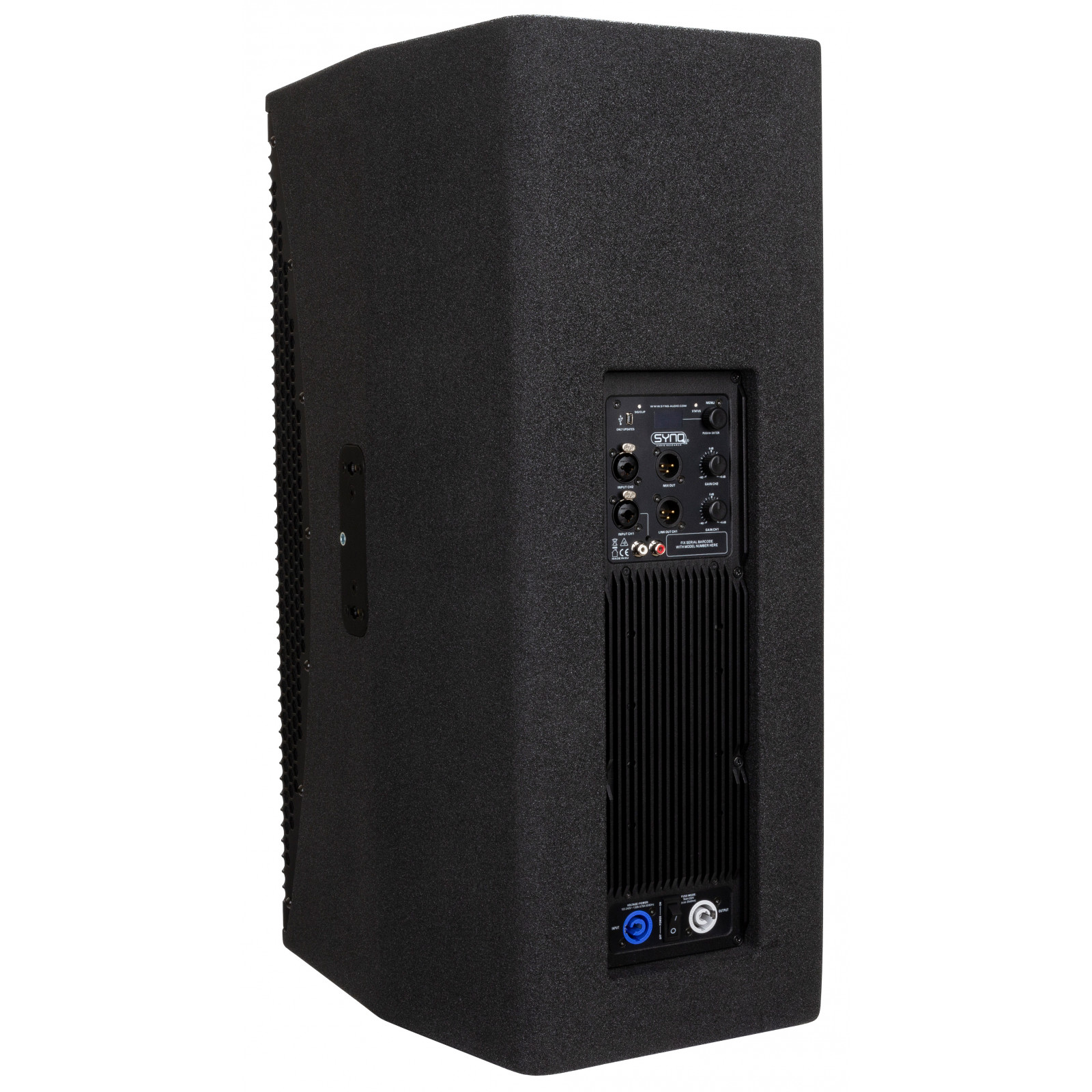

• Two mixable input channels:
  • CH1: Balanced LINE input (XLR / Jack 6.3mm) & unbalanced (RCA / cinch)
  • CH2: Balanced LINE input (XLR / Jack 6.3mm)
• 2 audio outputs:
  • LINK OUTPUT with only the CH1-signal
  • MIXED OUTPUT: link to other speakers
• PowerCON in/out with separate power switch.
• Different rigging option for horizontal / vertical suspension.
• Special quick-mount U-bracket (optional):
  • Easy TRUSS mounting with PAN/TILT possibility
  • Pole mount with PAN/TILT possibility
  • Handles on top/bottom with internal 38mm speaker stand adapter
• 1st choice Baltic birch plywood with scratch free black textured Polyurea finishing.

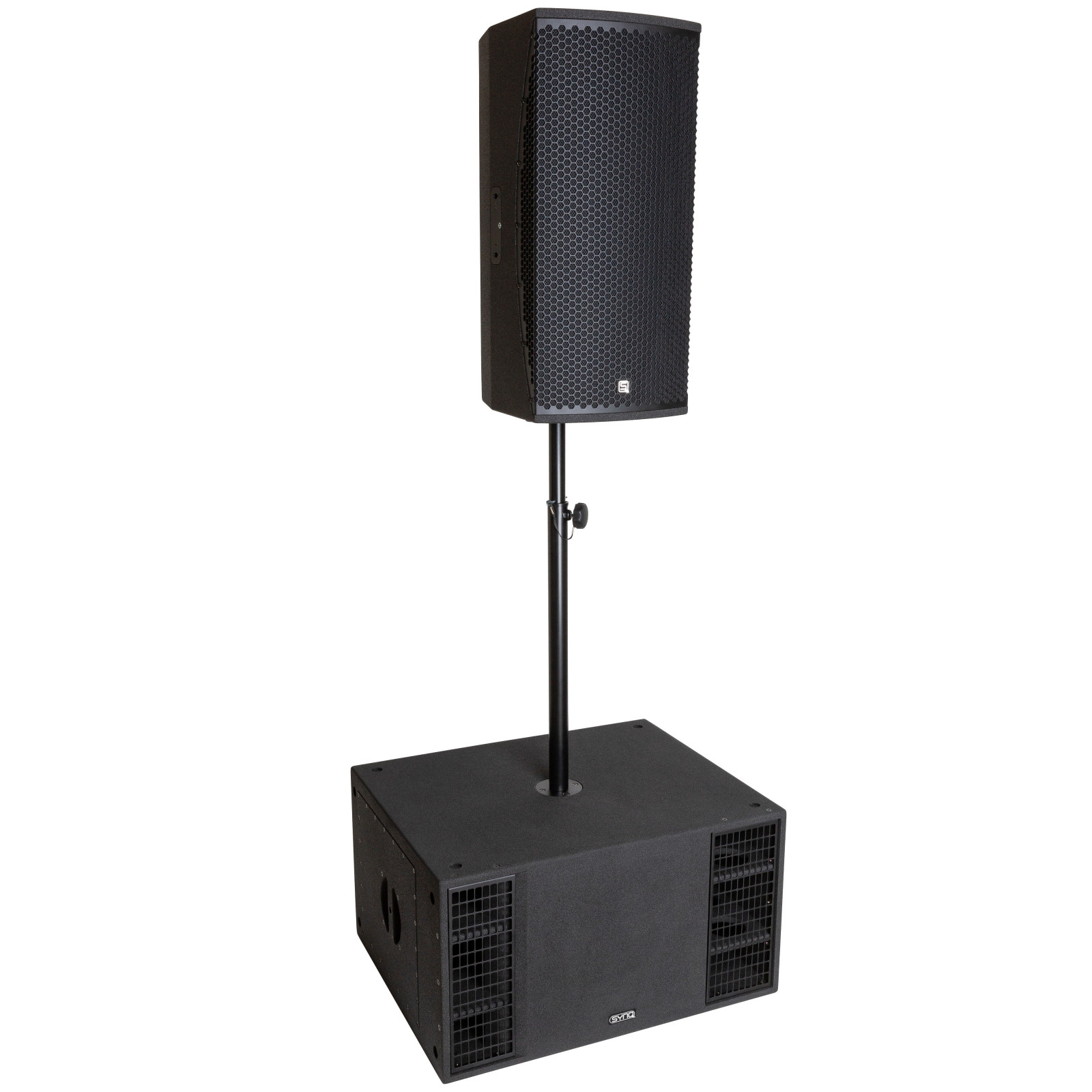

• Combines perfectly with:
  • 1 or 2 SA-B15 active subwoofers
  • SQ-215 and SQ-218 passive subwoofers (extra amplifier / filter needed)
• Heavy duty rubber feet.
