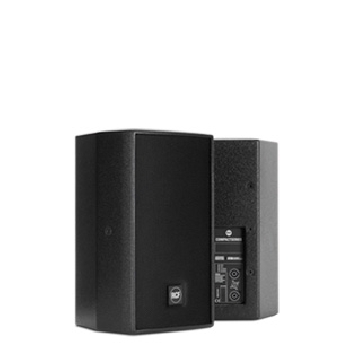

Описание за RCF C3108-96
Features
-
90°x 60° CMD (Constant Matching Design) constant directivity horn
-
Rotatable Horn System for horizontal cabinet mounting applications
-
HF driver AMCDP (Active Mosfet Compression Driver Protection)
-
LICC (Low Impedance Compensated Crossover) network
-
8 Suspension points
-
Omnimount™ 75 Plate fixing positions on rear of cabinet
-
35 mm standard internal pole mount
Acoustical Specifications
-
Frequency Response -10 dB: 70 Hz ÷ 20 kHz
-
Max SPL @ 1m: 126 dB
-
Horizontal coverage angle: 90°
-
Vertical coverage angle: 60°
-
Directivity index; Q: 10
-
System Sensitivity: 95 dB
-
Nominal Impedance: 8 Ω
-
Power Handling: 300 W
-
Peak Power Handling: 1200 W
-
Recommended Amplifier: 600 W
-
Protections: Dynamic
-
Crossover frequencies: 2000 Hz
Transducers
-
Compression Driver: 1" HFdriver, 1.5" voice coil
-
Nominal Impedance: 8 Ω
-
Input Power Rating: 25 W AES
-
Sensitivity: 106 dB
-
Woofer: 8" woofer, 2.0" voice coil
-
Nominal Impedance: 8 Ω
-
Input Power Rating: 200 W AES
-
Sensitivity: 94 dB
Input Section
-
Input connector: Speakon NL4
-
Output connector: Speakon NL4
Cabinet
-
Cabinet Material: 12 mm birch plywood construction
-
Hardware: 6 x M8 back, 2 x M10 side
-
Pole Mount/Cap: 1 top, 1 bottom
-
Grille: custom perforated steel grille, epoxy powder coated, covered with polyurethane perforated cloth
-
Colour: Black
Physical Specifications
-
Height: 427 / 16.81 mm/inch
-
Width: 242 / 9.52 mm/inch
-
Depth: 263 / 10.35 mm/inch
-
Net Weight: 12.2 / 29.9 kg/lbs
