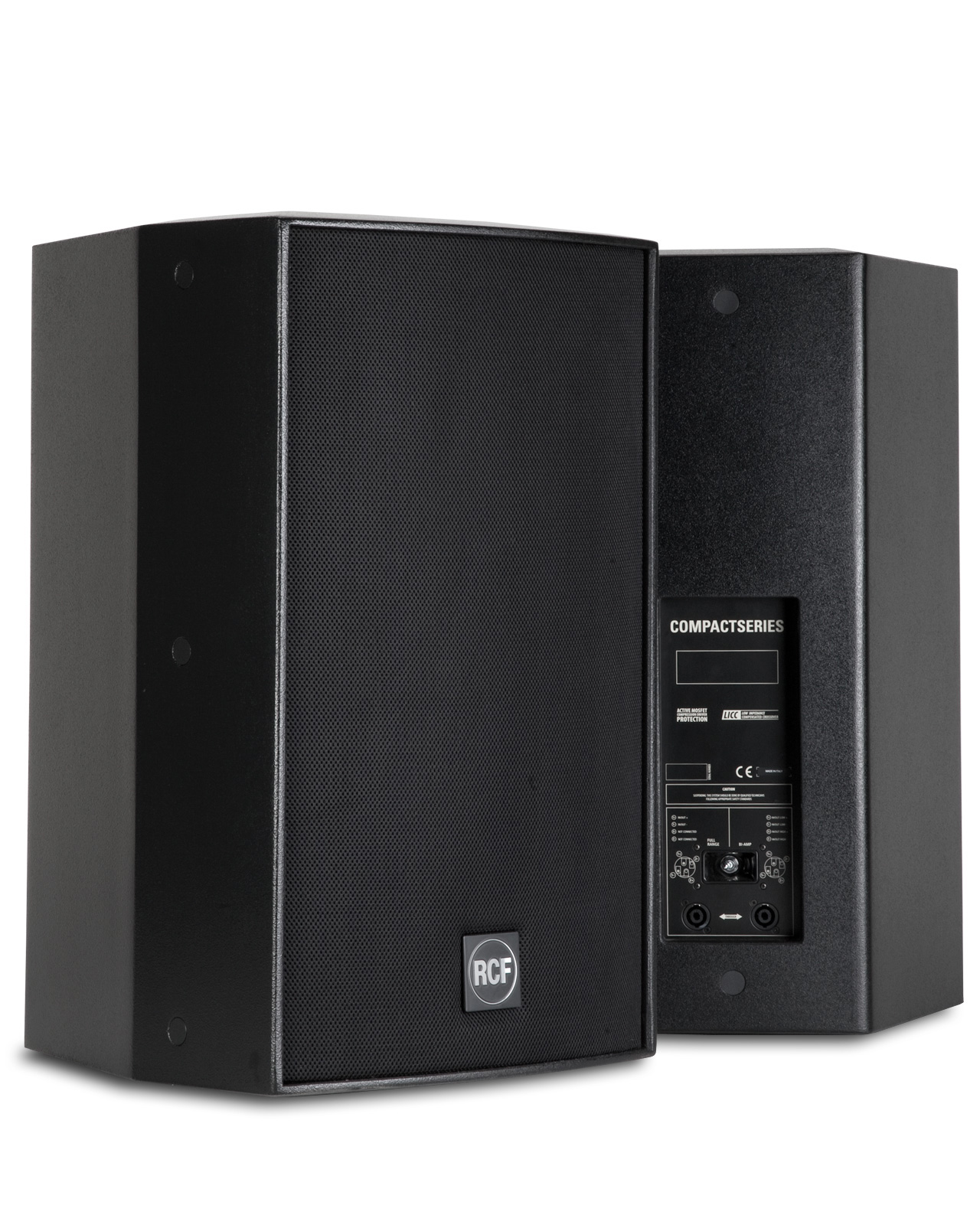

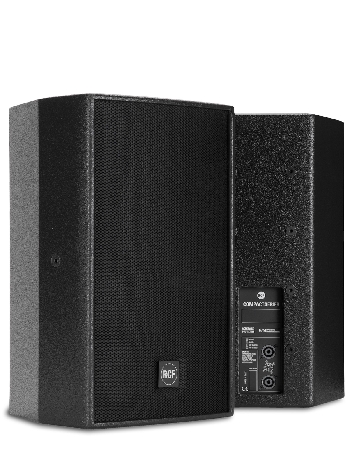

Описание за RCF C3110-126
Features
-
120° x 60° CMD (Coverage Matching Design) constant directivity horn
-
Rotatable Horn System for horizontal cabinet mounting applications
-
HF driver AMCDP (Active Mosfet Compression Driver Protection)
-
LICC (Low Impedance Compensated Crossover) network
-
10 Suspension points
-
1 top pole mount, 1 bottom pole mount
Acoustical Specifications
-
Frequency Response -10 dB: 67 Hz ÷ 20 kHz
-
Max SPL @ 1m: 127.5 dB
-
Horizontal coverage angle: 120°
-
Vertical coverage angle: 60°
-
Directivity index; Q: 11
-
System Sensitivity: 96.5 dB
-
Nominal Impedance: 8 Ω
-
Power Handling: 300 W
-
Peak Power Handling: 1200 W
-
Recommended Amplifier: 600 W
-
Protections: Dynamic
-
Crossover frequencies: 2200 Hz
Transducers
-
Compression Driver: 1" HF driver, 1.5" voice coil
-
Nominal Impedance: 8 Ω
-
Input Power Rating: 25 W AES
-
Sensitivity: 106 dB
-
Woofer: 10" woofer, 2" voice coil
-
Nominal Impedance: 8 Ω
-
Input Power Rating: 250 W AES
-
Sensitivity: 96 dB
Input Section
-
Input connector: Speakon NL4
-
Output connector: Speakon NL4
Cabinet
-
Cabinet Material: 15 mm birch plywood construction
-
Hardware: 8 x M8 back, 2 x M10 side
-
Pole Mount/Cap: 1 top, 1 bottom
-
Grille: custom perforated steel grille, epoxy powder coated, covered with polyurethane perforated cloth
-
Colour: Black
Physical Specifications
-
Height: 500 / 19.68 mm/inch
-
Width: 300 / 11.81 mm/inch
-
Depth: 298 / 11.73 mm/inch
-
Net Weight: 15.8 / 34.83 kg/lbs
