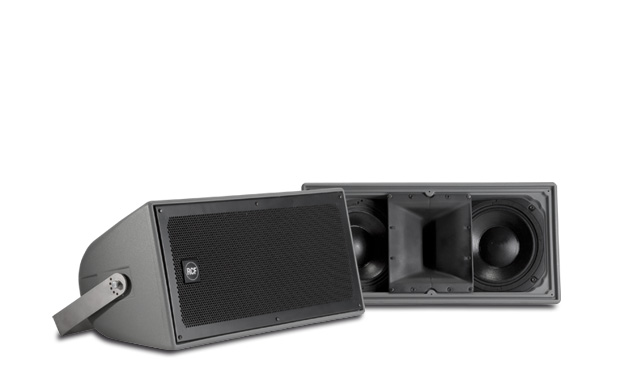

RCF P3108

Weatherproof cabinet IP 55

Aluminium grill

One 8\'' high-output LF transducer with 2.5\'' voice coil

Once RCF Precision Neodymium 1\'' Compression Driver with 1:5\'' voice coil

90° x 60° constant directivity horn

Built in passive crossover

2° x 15° enclosure sides for array configurations

Active Mosfet Compression Driver Protection

4 brass suspension points (M8)

Imput connector 4 pole Amphenol IP 67

Mounting hardware 304 stainlesssteel, highly resistant to corrosion and oxidation

Frequency Response -10 dB: 80 Hz ÷ 20 kHz

Max SPL @ 1m: 125 dB

Horizontal coverage angle: 90°°

Vertical coverage angle: 60°°

Directivity index; Q: 11

System Sensitivity: 94 dB

Nominal Impedance: 8 Ω

Power Handling: 300 W

Peak Power Handling: 1200 W

Protections: Dinamyc

Crossover frequencies: 1800 Hz

Compression Driver: 1\'' HF driver, 2.5\'' voice coil

Nominal Impedance: 8 Ω

Input Power Rating: 25 W AES

Sensitivity: 109 dB

Woofer: 8\'' woofer, 2.5\'' voice coil

Nominal Impedance: 8 Ω

Input Power Rating: 300 W AES

Sensitivity: 95 dB

Cabinet Material: Polyethylene rotomoulded

Hardware: 4 x M8 + U-bracket and pair of spacers

Grille: Custom perforated aluminium grille with open-cell fiber and water repellent woven fabric backing

Colour: Gray

Height: 266 / 10.47 mm/inch

Width: 493 / 19.41 mm/inch

Depth: 250 / 9.84 mm/inch

Net Weight: 10 / 22 kg/lbs
